Displaying an Image on Graphical LCD using 8051 Microcontroller

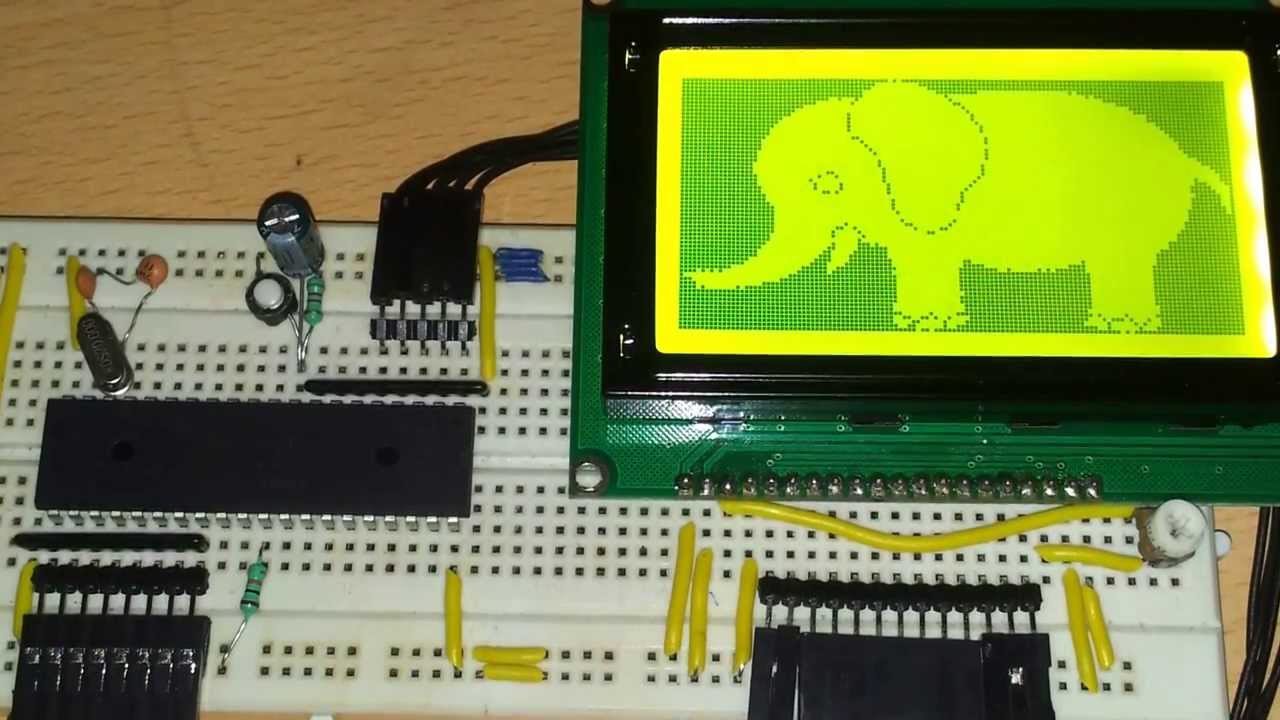

This Project involves displaying of the image on a graphical lcd using 8051 Microcontroller.

Project Information

In our daily lives, we encounter various devices that display text, images, and graphics. LCDs, being widely popular in the field of electronics, are commonly utilized in projects that require information display. There are numerous types of LCDs used in electronic projects, with the 16×2 LCD being extensively employed in our previous projects, along with TFT LCDs in conjunction with Arduino. To explore our collection of projects related to 16×2 LCDs, including interfacing with 8051, AVR, Arduino, and more, kindly follow this link.

Additional Information

Language used:- embedded c

Components Required:

  • Graphical LCD
  • AT89c52 8051 Microcontroller
  • 7805 voltage regulator
  • 1000uf capacitor
  • 10 uF capacitor
  • 10K resistor
  • 10K POT
  • Crystal Oscillator 12 MHz
  • Connecting wire
  • Bread Board
  • Burg strips male
  • LED
  • 220 Ohm resistor
  • 1K resistor
