LCD Interfacing with 8051 Microcontroller


This project illustrates the connection of a 16×2 LCD module to the AT89S52 microcontroller, highlighting its importance as a key output device in embedded projects and electronics products, while emphasizing the initial complexity and subsequent simplicity of the interface process.

Project Information

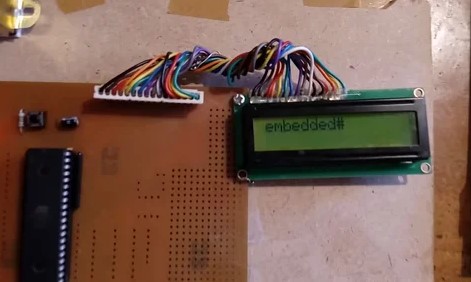

Display units hold immense significance as output devices in embedded projects and electronic products, with the 16×2 LCD standing out as one of the most widely utilized display units. With two rows capable of displaying 16 characters per line, each character occupying a 5×7 matrix space on the LCD, this tutorial focuses on connecting a 16×2 LCD module to the AT89S52 microcontroller. Although interfacing an LCD with a microcontroller may initially appear complex to beginners, understanding the underlying concept makes it straightforward and approachable. While connecting the 16 pins of the LCD to the microcontroller may require time and attention, familiarizing oneself with the pin configuration is the first step towards successful integration.

Additional Information

Language used:- embedded c

Components used:-

  • 16*2 LCD DISPLAY
